Matek F722-STD FC + pulse 2.0 receiver

Help
1

Hey everyone. I was wondering if anyone can help me find out how I connect the Pulse 2.0 receiver to Matek F722-STD Flight Controller. The transmitter manual don’t have any protocol mentioned so I’m not sure how to connect the receiver to FC. Help

Transmitter + receiver manual - https://www.google.co.uk/url?sa=t&source=web&rct=j&url=https://www.cmldistribution.co.uk/diagrams/Etronix/ET1127%2520X6%2520Manual.pdf&ved=2ahUKEwj7i7vvl5zdAhUsKsAKHQCzCXIQFjAAegQIAhAB&usg=AOvVaw3WkuCDrwYrYMI6_3tJdj_I

FC - https://www.unmannedtechshop.co.uk/matek-f722-std-flight-controller-with-built-in-osd/

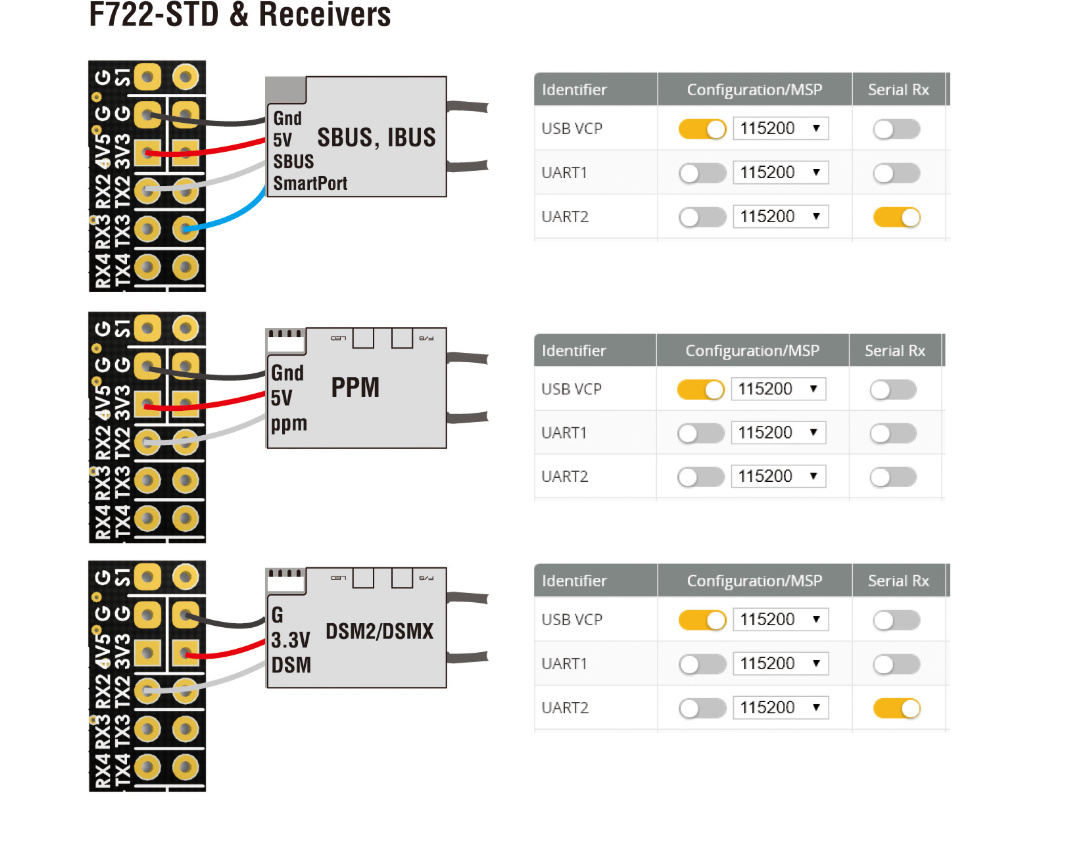

image1074×845 184 KB

2

Did you set the correct Protocol and Receiver Options in the Configuration Tab?

3

I don’t have the FC yet. I’m going to buy it and I wanted to know how to/even possible to connect my receiver before I buy the FC
eg: the wiring etc…
thanks

4

Looking at the manual for your TX and RX I see no mention of PMM/IBus or SBus protocols…’
But a PWM output for each channel.

Looking at your FC… I don’t think they will work together.
It may be worth upgrading your TX i’m afraid.
