Matek F722 STD fixed wing install

Help
, ,
1

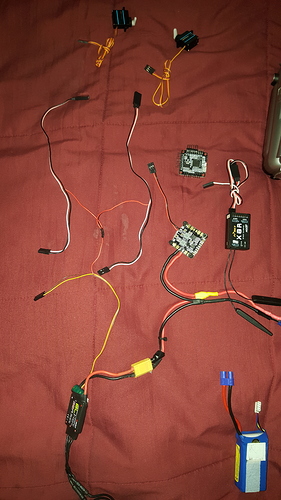

I just got the new matek f722 STD and have no clue as to how to hook up the 2 servors, receiver, ESC, PDB.

1528131791766224469316
1528131791766224469316.jpg2113×3756 2.46 MB
Any takers on this?

2

Are you using Inav software, and are you using a flying wing, or a more traditional fixed wing with ailerons, elevator and rudder?

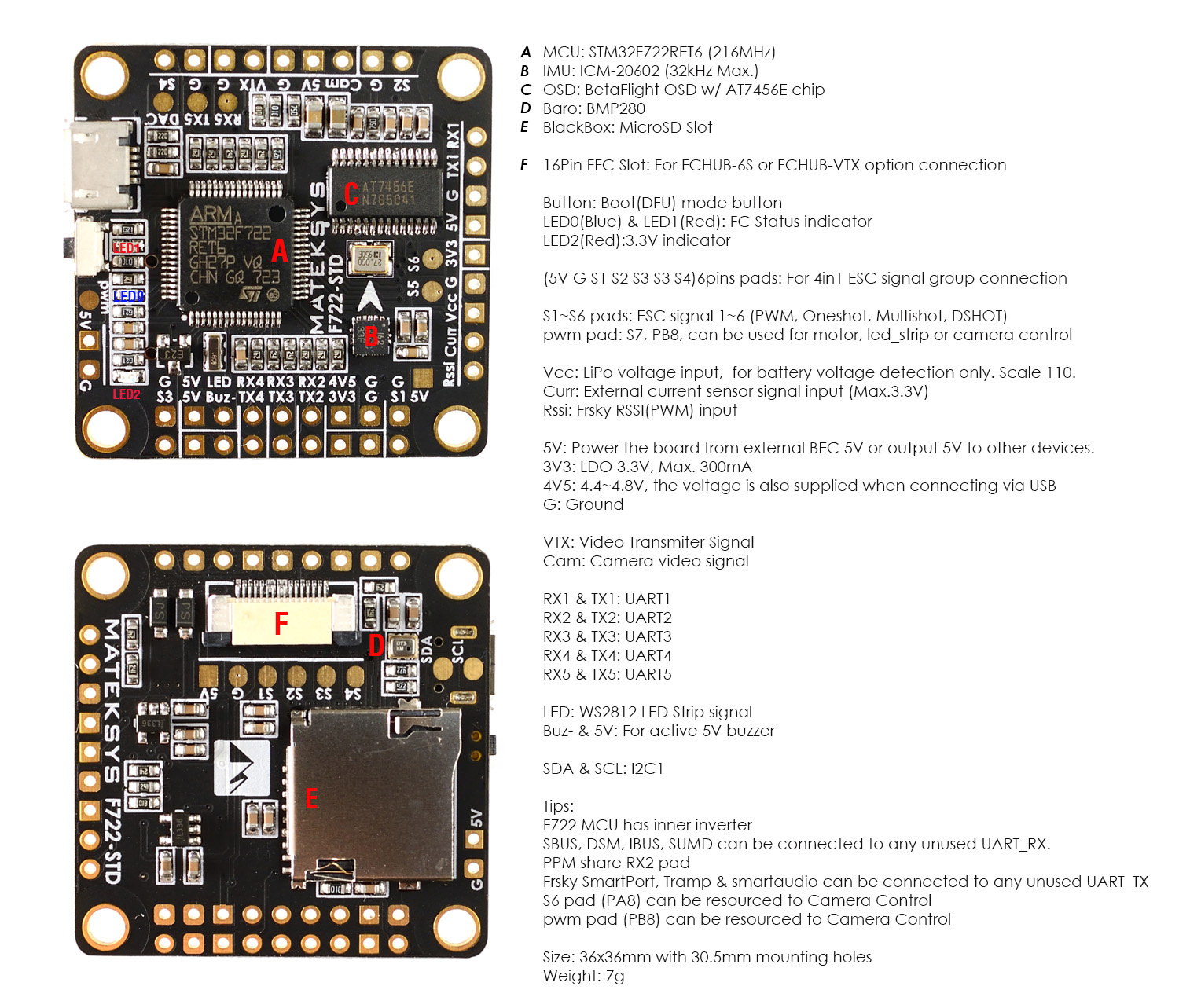

Here is the pinout of the Matek F722-STD board:

image.jpg1500×1283 604 KB

and here are the pin definitions depending on what software/platform you have loaded onto it.

image.png1069×504 11.5 KB

But basically you will need to hook up some sort of power distribution harness to power your servos/ESC as the signal wire (orange wire from your servo) will need to go to the S2, S3, S4 pins on the bottom of the FC, and the orange wire from your ESC will need to go to s1.

1 Like
3

Ok, got it. Now the GPS is needed.
