Helloo, i just had my new F4 matek 405STD FC come today, i had a new body for the copter also as i felt the previous one was just a bit poop. So heres a time lapse of it all going together.

Enjoyyyy

1 Like
2

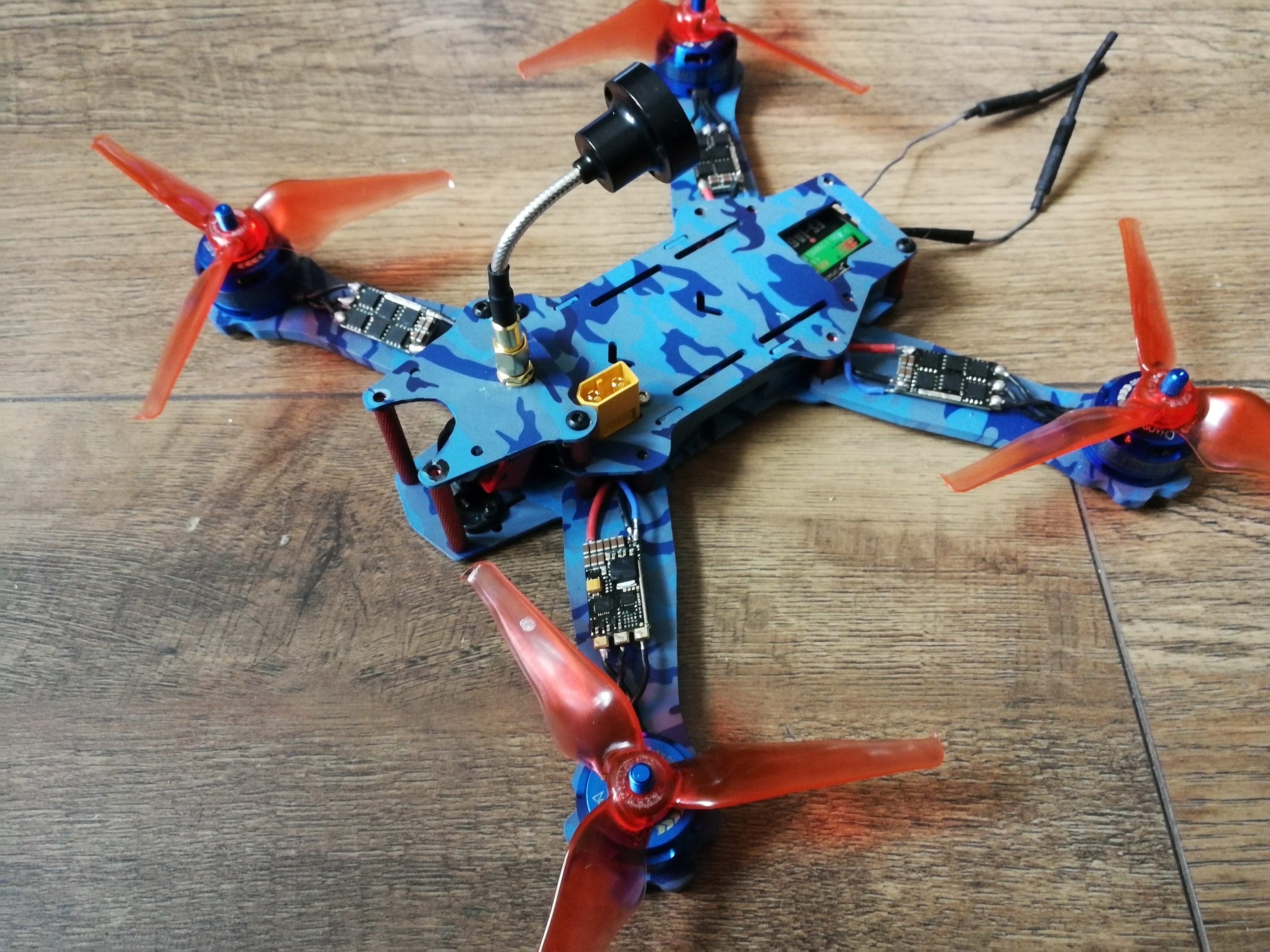

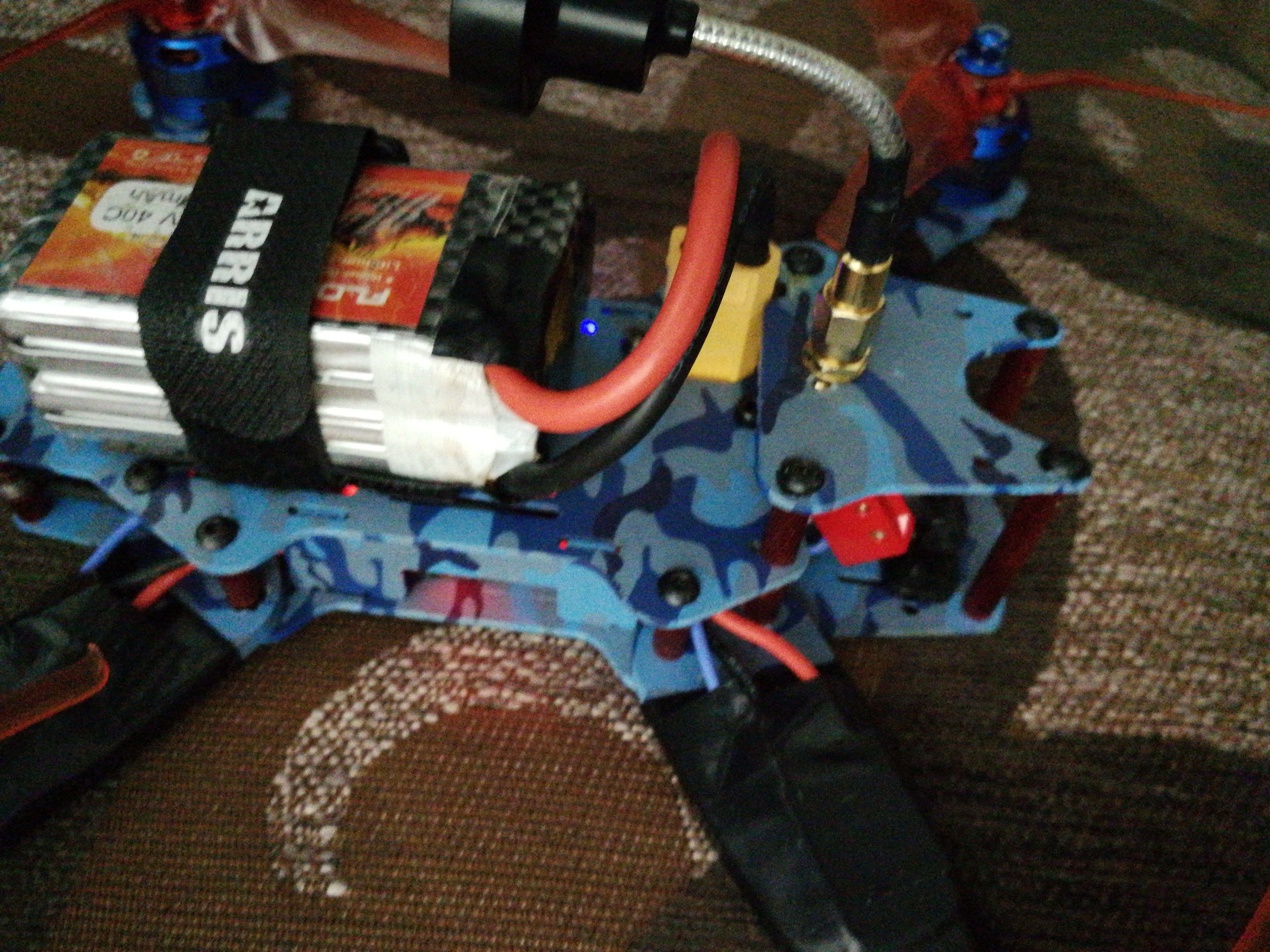

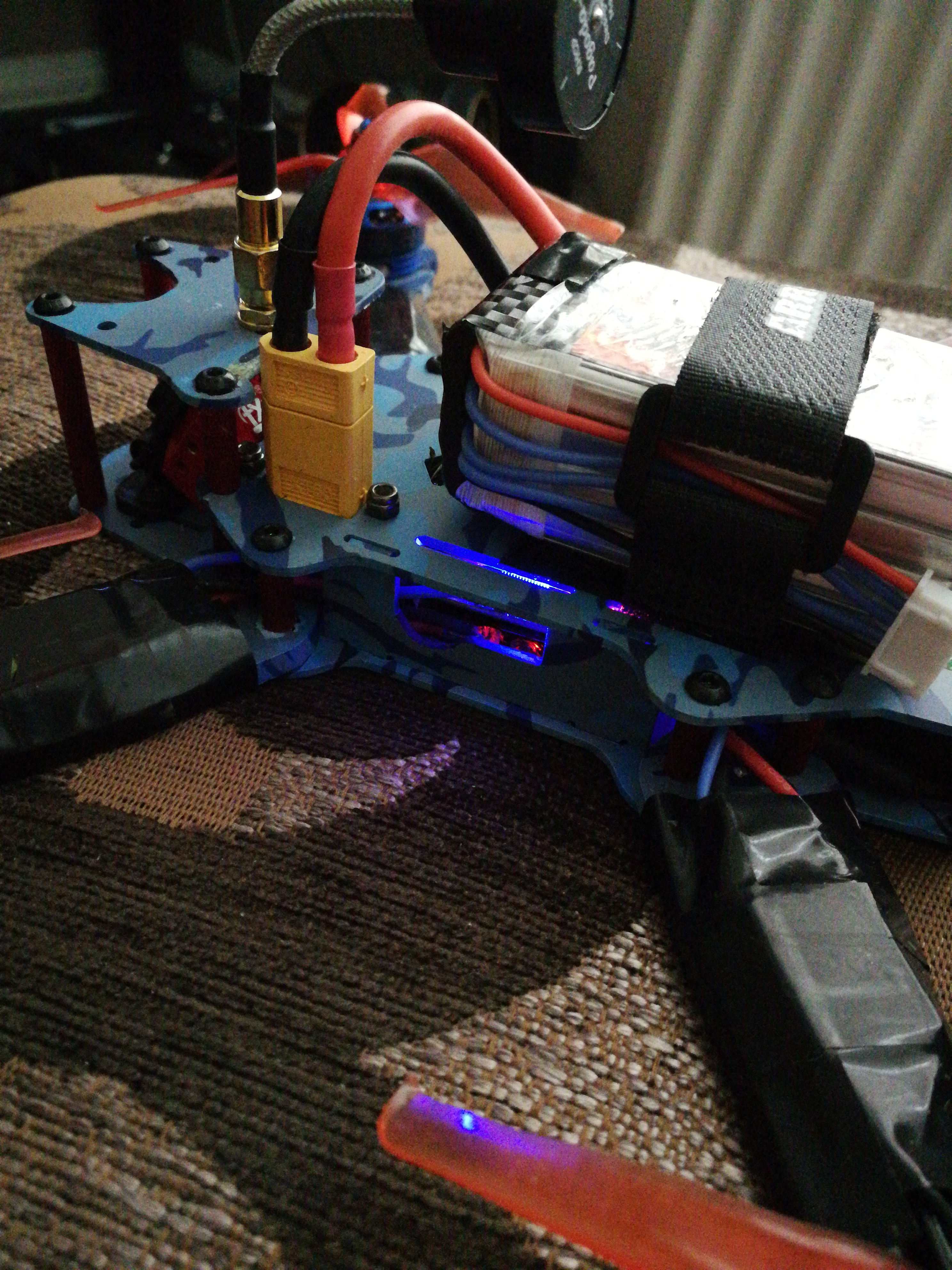

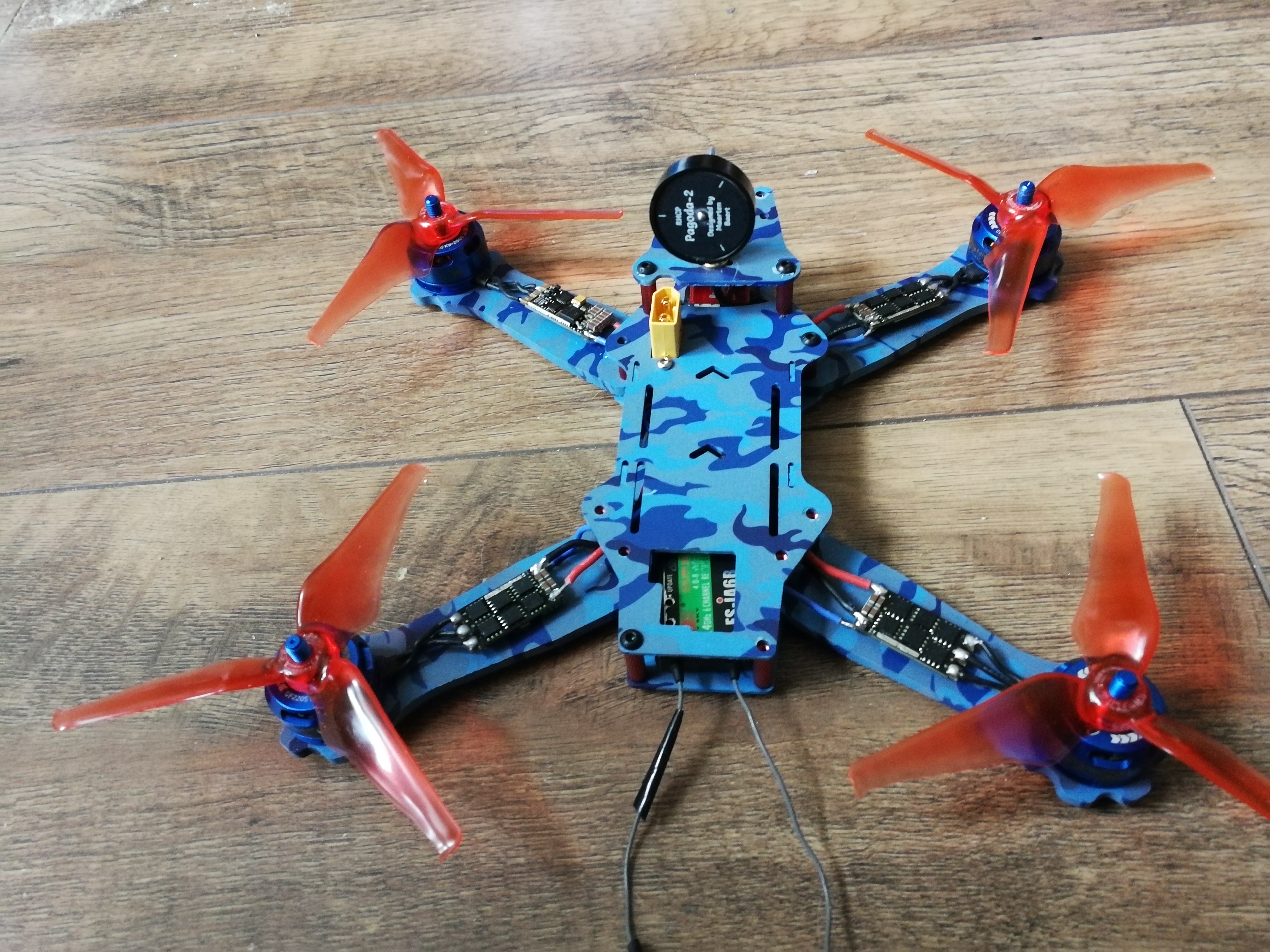

Heres a few images of the ALMOST finished produxt. Love this frame alot, its got a really easy accessible XT60 port on its back, so i just wired up that straight to the PDB.

Any questions feel free to askkk

IMG_20181016_171907
IMG_20181016_171907.jpg5120×3840 4.48 MB
IMG_20181016_171913
IMG_20181016_171913.jpg5120×3840 4.47 MB
IMG_20181016_171907
IMG_20181016_171907.jpg5120×3840 4.48 MB

3

Nice, I like the paintwork on the frame :+1:

1 Like
4

yeah i love the camo effect its great.
some has chipped off around the screws but thats expected.

thing is aswell, its advertised as 5" quad, but i can see that you can easily fit 6" props on this :stuck_out_tongue:

5

What frame is that? I’ve not seen one with the XT60 coming through the top like that.
Interesting…

6

Arris? Ive never heared of it either but i love the frame everything is so conveniently placed nothing gets in the way.

15403886385681119142202479490770
15403886385681119142202479490770.jpg2976×3968 3.99 MB
1540388702392190236989292736613
1540388702392190236989292736613.jpg3968×2976 4.27 MB

Edit:though saying this i have made some minor modifications to it. For instance the vtx antenna at the front i drilled out a hole for a snug fit.
