Wiring up Micro minim OSD

Help
,
1

Hey Guys,
I bought a Micro Minim Osd…
BUT:
Im not 100% sure about the wiring…
I have found many different layouts and im wondering which one is not wrong…

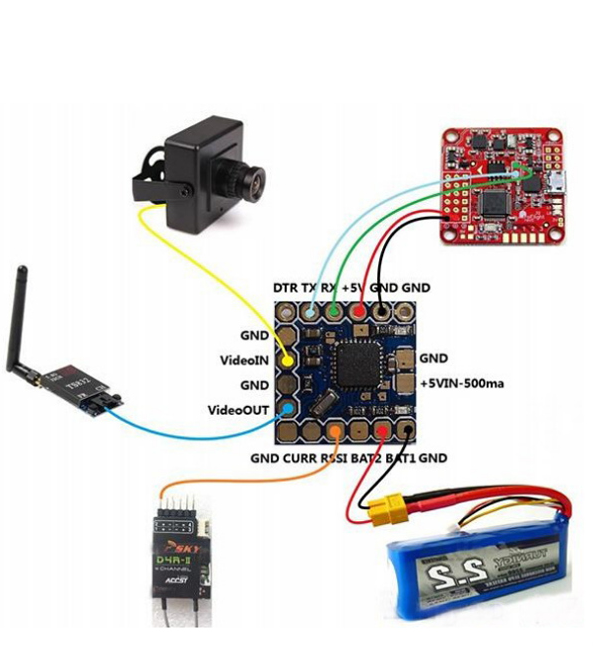

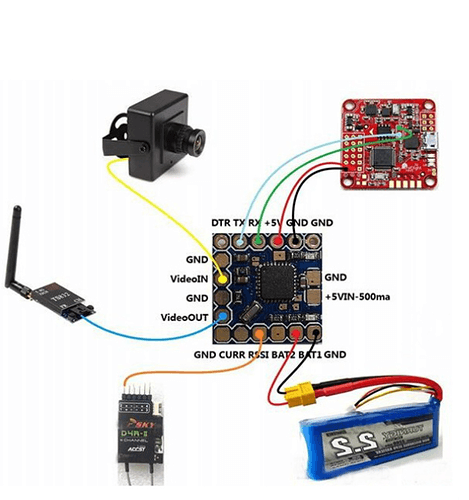

My Idea was to connect everything like this:

Wiring OSD
Wiring OSD606×646 271 KB

(Instead of the FC in the picture i will use a Kiss FC…)
I only wanted to be sure…

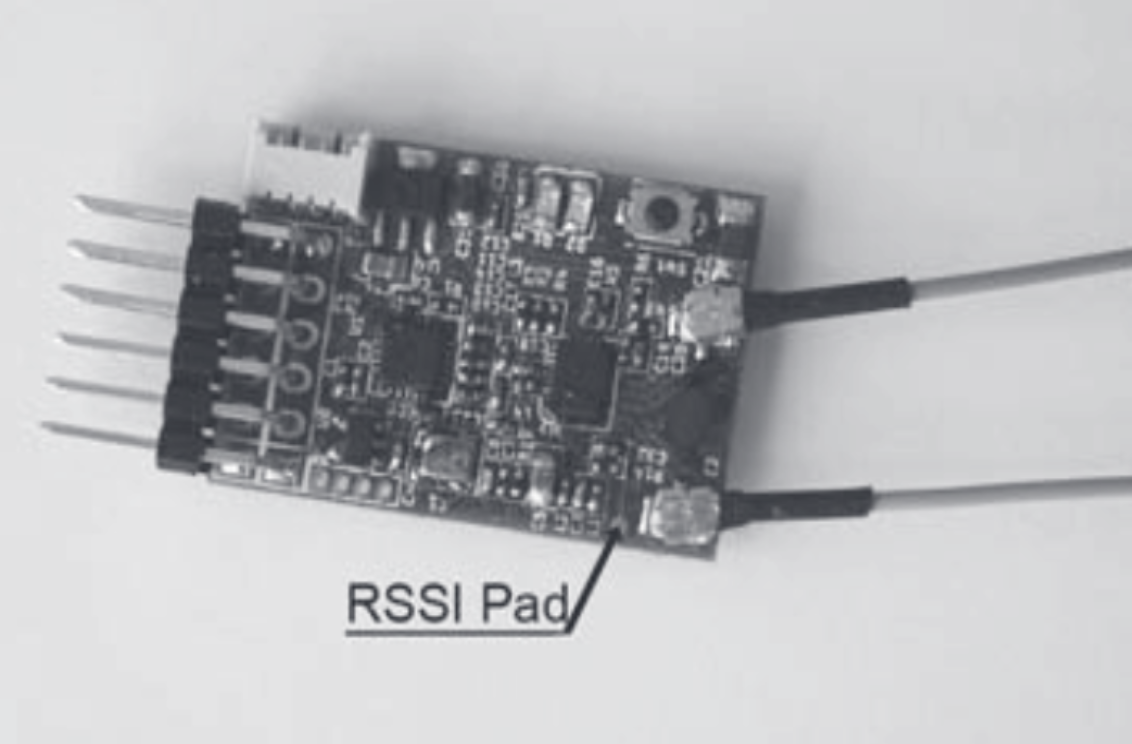

Do i get the RSSI signal of the Receiver out of the RSSI PWM Output?
I mean this one:
x4r sb manual rssi
x4r sb manual rssi1132×744 331 KB

Also:
Can i take the 5v for the osd of the 5v pads on the kiss fc?

Thanks for your answers

Luca :slight_smile:

2

What you have there, makes sense to me.

Let us know how you get on.

1 Like
3

SOLVED:
Ive read some manuals and now know what to do…
Thanks for your reply Jason :slight_smile:
When im all finished with my build i will do a build Log.

Luca :slight_smile:
